Name: Small Oled Screen 1.46 Inch Amoled Display With SPI Interface
Brand: Zoyo
SKU: ZY14601
Price: 2 USD
Availability: InStock
Rating: 4.8 (110 reviews)

جزئیات محصول

محل منبع: هانگژو، چین

نام تجاری: Zoyo

گواهی: ISO 9241; IEC62341; JEITA CP-3451; ANSI/AAMI ES60601-1-2; IEC 60068

شماره مدل: ZY14601

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش: MOQ انعطاف پذیر

قیمت: $2~$500 per piece

جزئیات بسته بندی: سفارشی

زمان تحویل: 3-4 هفته

شرایط پرداخت: L/C، D/A، D/P، T/T، Western Union، MoneyGram

قابلیت ارائه: 5 تا 20 هزار قطعه در روز

بهترین قیمت رو بدست بیار

جزئیات محصول

توضیحات محصول

برجسته:
                                                                                                                                                                                1.46 inch Amoled Display,Small Oled Screen,SPI Interface Amoled Display, Small Oled Screen, SPI Interface Amoled Display


اندازه (اینچ):	1.46	قطعنامه:	194*368
روشنایی (شب):	600	دمای کار:	-20 تا 70 ℃

اندازه (اینچ):	1.46
قطعنامه:	194*368
روشنایی (شب):	600
دمای کار:	-20 تا 70 ℃

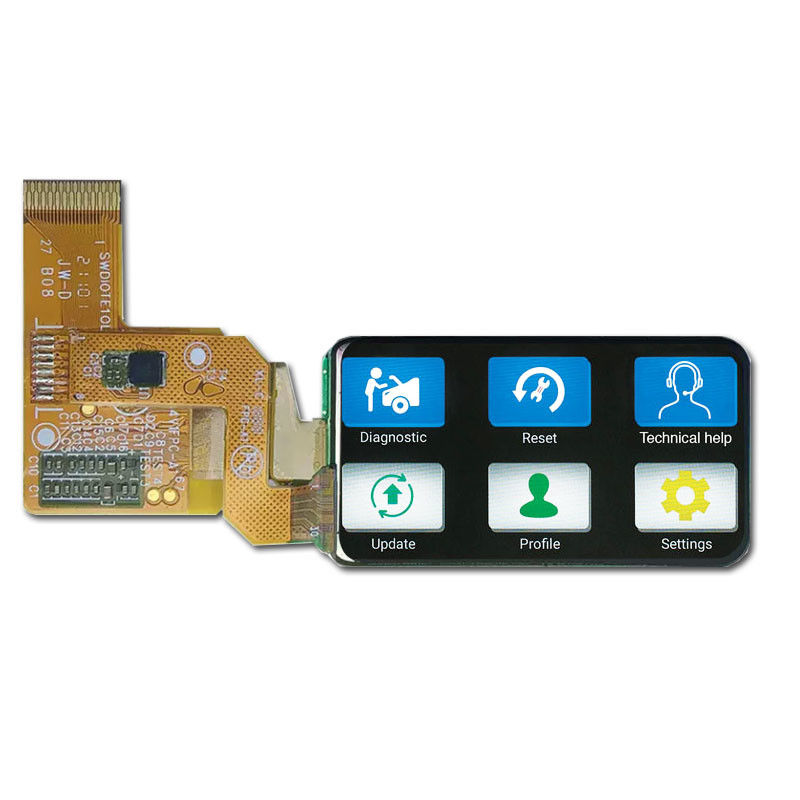

Small Oled Screen 1.46 Inch Amoled Display With SPI Interface

GENERAL SPECIFICATIONS
Item		Specification	Unit	Note
Screen Size		1.46
Resolution		194*368	pixels
Operating Temperature		‐20 ~ 70	°C
Pixel Density		282	ppi
Luminance		600	Cd/m2	-
Module Size	Horizontal (H)	19.36	mm	typ
	Vertical (V)	36.17
	Thickness (T)	0.5
Active Area	Horizontal	17.46	mm
Active Area	Vertical	33.12	mm
TP		Oncell
Shape		Bar
Interface Type		SPI/QSPI/MIPI/I2C
Color Gamut		DCI-P3 Typ. 100%
Color depth		24	bits
Contrast Ratio		1000000:1
Power Consumption(mW)		124	mW
Refresh rate		60Hz(15Hz-AOD)
Low Blue Light		5%
Kind Tips: More details please contact us for products' specifications

Our Service:

Technical Support

Customer Service: Access to customer support for addressing queries and issues.
Engineering Support: Direct contact with technical engineers for complex integration challenges or custom requirements.

Firmware Updates

Regular Updates: Provision of firmware updates to ensure compatibility and performance improvements.
Update Instructions: Clear instructions on how to perform firmware updates.

Compliance and Certification Documentation

Regulatory Compliance: Information and certification documents for compliance with relevant standards (e.g., CE, RoHS).
Quality Assurance: Documentation on quality control processes and product reliability testing.

Mechanical Drawings and 3D Models

CAD Files: 3D models and detailed mechanical drawings to aid in the physical design and integration of the display into the end product.
Mounting Templates: Templates to assist with precise placement and mounting of the display.
